Our Biogas Desulfurization and Dehydration Tank is a core piece of equipment for biogas purification and environmental protection treatment. It is specially designed to remove hydrogen sulfide (H₂S) and moisture from biogas, effectively preventing pipeline corrosion and equipment damage while ensuring the safe and efficient utilization of biogas.
Adopting a robust vertical cylindrical structure, this tank is widely used in biogas projects from sewage treatment plants, livestock farms, and organic waste fermentation systems. It meets international standards for material thickness and manufacturing, providing reliable performance for long-term operation.
· Main Material: Carbon Steel (Q235B/Q345R) or Stainless Steel (304/316L) optional.
· Surface Treatment: Epoxy anti-corrosion coating (yellow) for carbon steel; passivation/polishing for stainless steel.
· Thickness Standard: National standard plate thickness (customizable according to pressure and capacity requirements).
· Corrosion Resistance: Excellent resistance to H₂S and moisture, ensuring long service life.

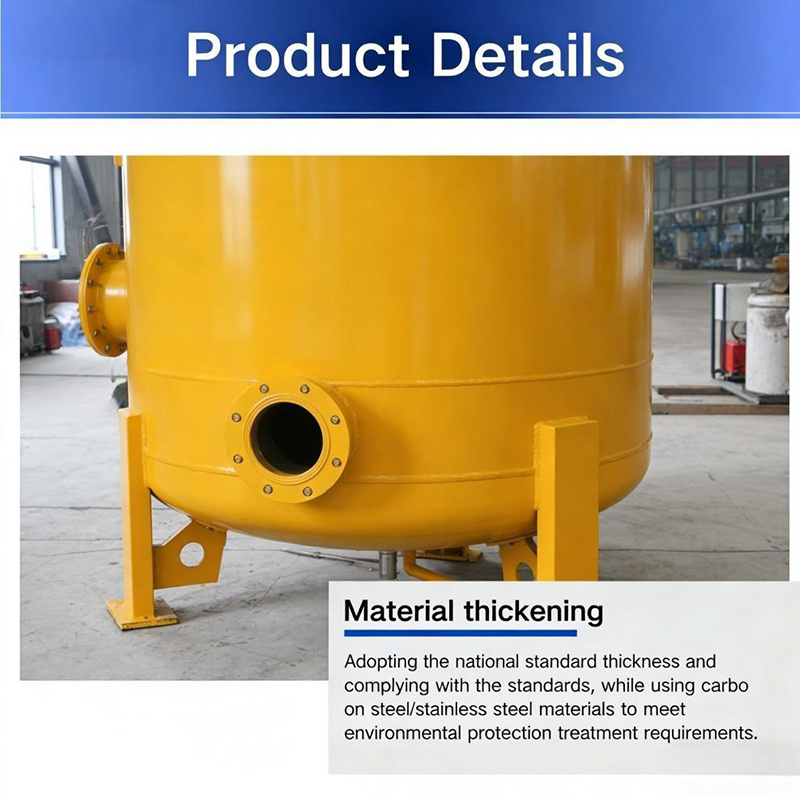

Material Thickening Design: Adopts national standard thickness steel plate, with reinforced welding and support structure, ensuring high pressure resistance and stability.
Corrosion Resistance: High-quality carbon steel/stainless steel material with professional anti-corrosion treatment, suitable for harsh biogas environments.
Customizable Service: Supports custom size, inlet/outlet diameter, and internal filler type (e.g., iron oxide, activated carbon) to meet different project requirements.
Easy Maintenance: Equipped with manhole/cleaning port for convenient filler replacement and internal inspection.
Technical Parameters
Parameter | Value Range (Customizable) |
Model | D400-D2000 (Diameter) |
Capacity | 0.5 m³ – 50 m³ |
Design Pressure | 0.01 MPa – 0.1 MPa (customizable) |
Material | Carbon Steel Q235B/Q345R; Stainless Steel 304/316L |
Inlet/Outlet Diameter | DN50 – DN300 (flange connection) |
Desulfurization Efficiency | ≥95% |
Dehydration Efficiency | ≥90% |
Filler Type | Iron Oxide, Activated Carbon (optional) |
Surface Coating | Epoxy anti-corrosion (yellow) / Passivation |
Installation Method | Vertical, floor-mounted |
Application
Sewage Treatment Plants: Biogas purification from anaerobic digestion of sewage sludge.
Livestock and Poultry Farms: Biogas desulfurization and dehydration from manure fermentation.
Organic Waste Treatment Projects: Biogas processing from kitchen waste and agricultural waste fermentation.
Biogas Power Generation Systems: Pre-treatment of biogas to protect generators and extend equipment life.
Small/Medium-Sized Biogas Projects: Suitable for decentralized rural biogas projects and industrial waste gas treatment.
