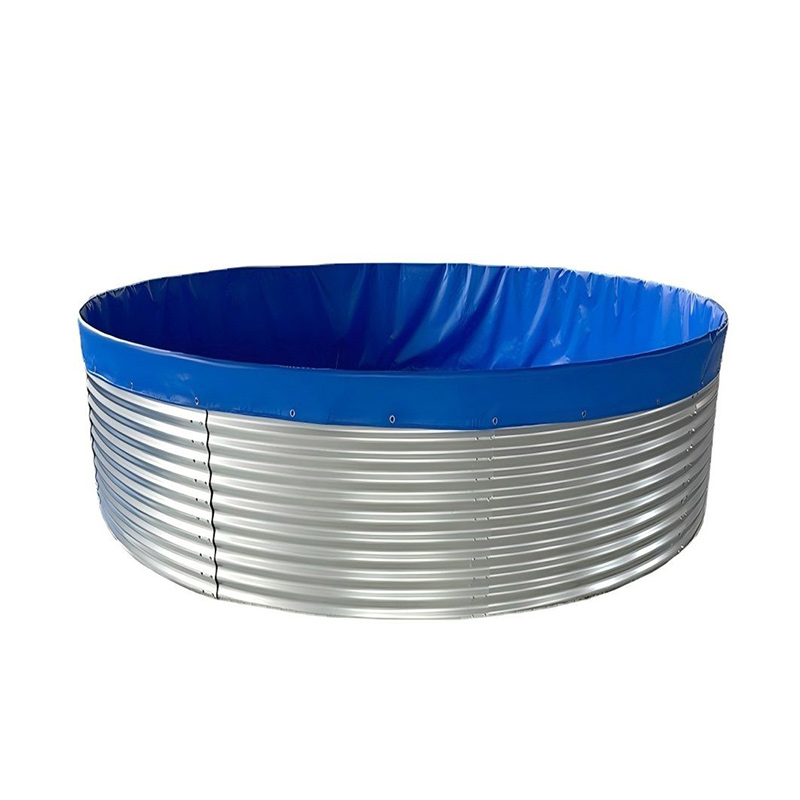

Our galvanized steel canvas fish tank is a modular, portable solution for aquaculture and water storage. It combines a sturdy corrugated steel frame with a heavy-duty PVC canvas liner, offering excellent durability and waterproof performance.
Product Specification
Item | Specification Details | Optional Range |
Product Model | Customizable | According to customer requirements |
Shape | Circular | Fixed (circular design for optimal pressure distribution) |

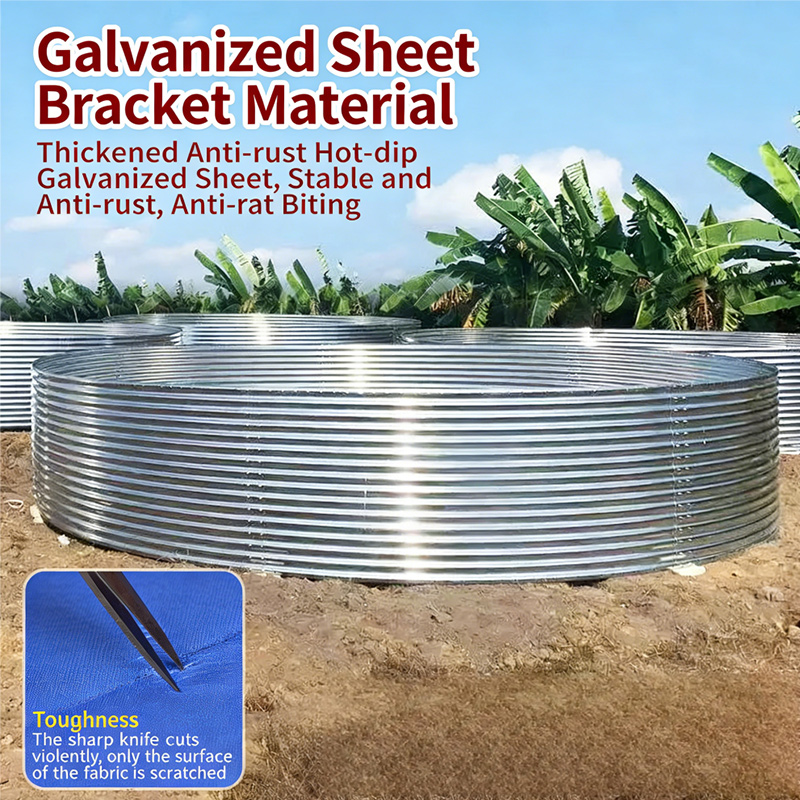

Outer Frame Material | Hot-dip galvanized corrugated steel sheet | Standard: Q235/Q345 steel grade |
Galvanized Sheet Thickness | 1.0mm / 1.5mm / 2.0mm / 2.5mm / 3.0mm | 1.0mm – 3.0mm (customizable) |

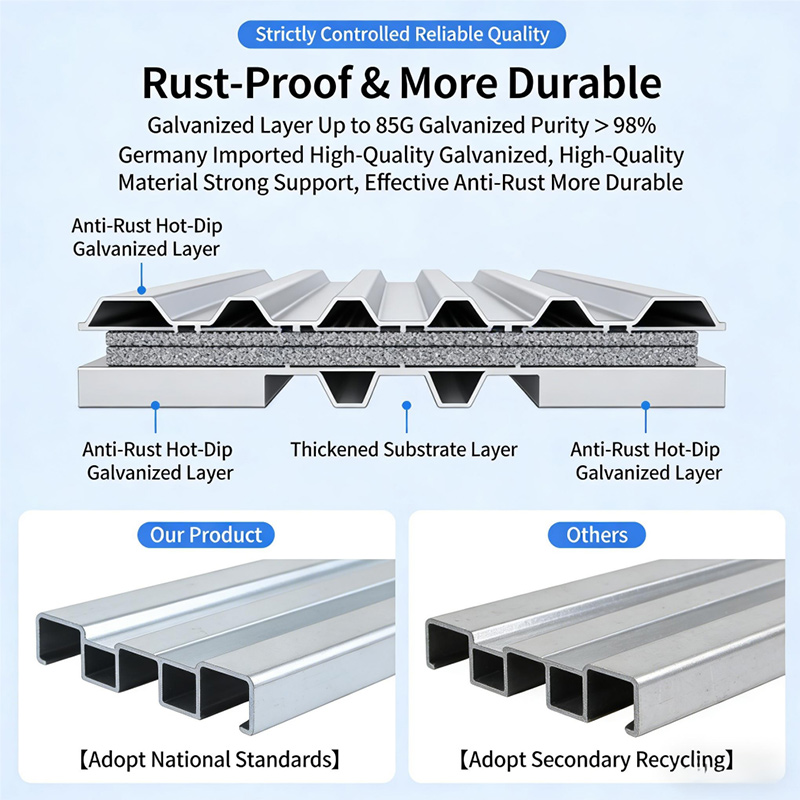

Zinc Layer Thickness | ≥80g/㎡ | Optional: ≥120g/㎡ (for high-corrosion environments) |

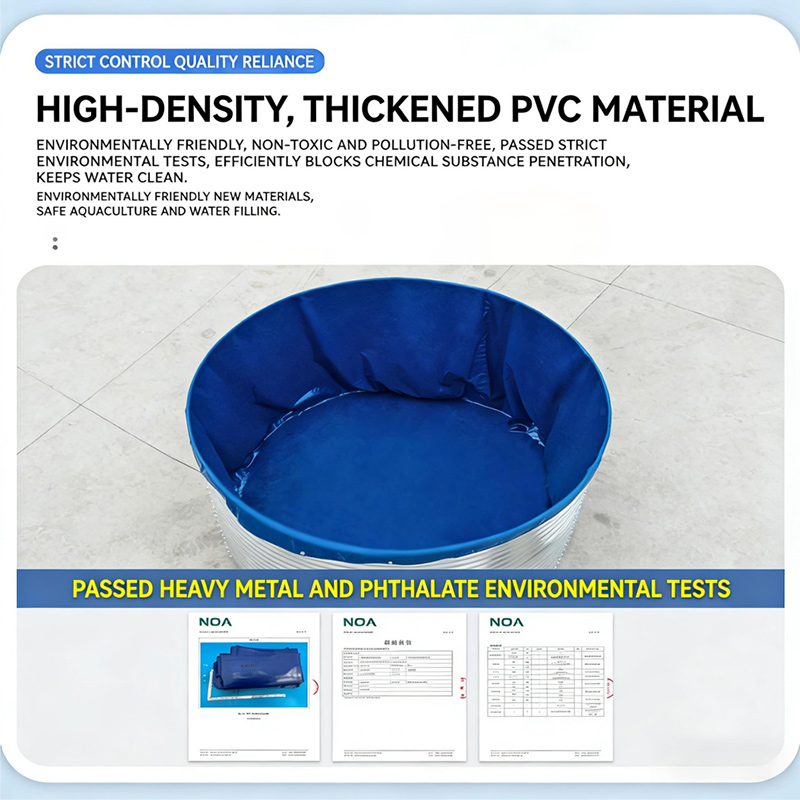

Inner Liner Material | Food-grade PVC knife-scraped canvas | Seawater-resistant PVC available for marine aquaculture |
Liner Thickness | 0.6mm / 0.8mm / 1.0mm / 1.2mm | 0.6mm – 1.2mm (customizable) |
Tank Diameter | Customizable | 3m – 30m |
Tank Height | Customizable | 1m – 3m |
Working Volume | Calculated based on diameter & height | e.g., φ10m × H1.5m ≈ 117.8 m³ |
Service Life | Galvanized frame: 10–15 yearsPVC liner: 5–8 years | Liner can be replaced separately |
Temperature Resistance | -30℃ ~ 60℃ | Suitable for global climate zones |
Water Compatibility | Freshwater / Seawater | pH 6.5 – 8.5 |

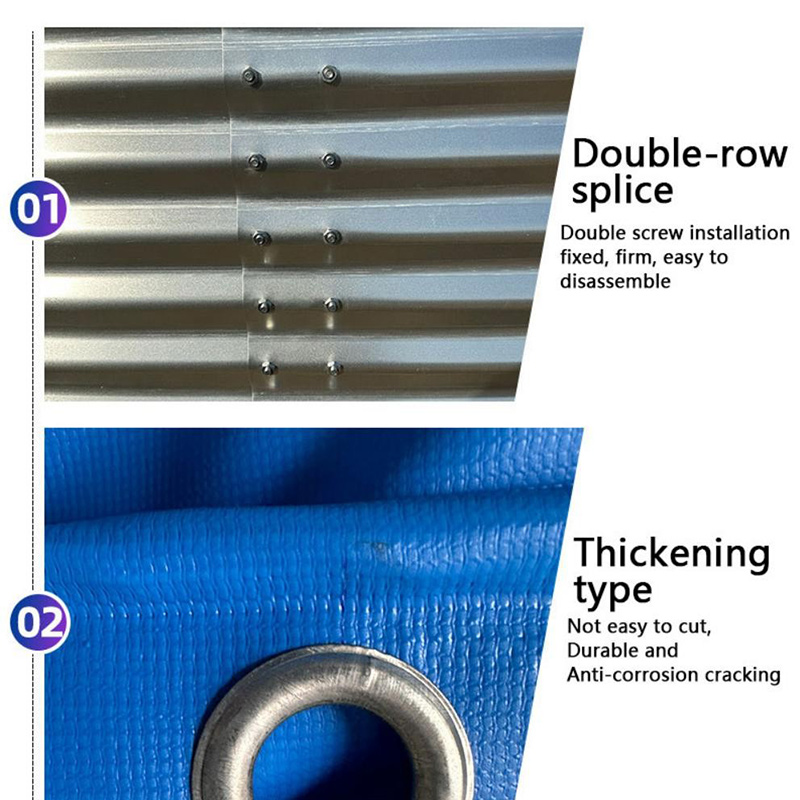

Installation Method | Modular bolted assembly | No concrete foundation required (flat solid ground) |
Installation Time | 1–2 days (1–2 workers) | Depends on tank size |
Packing Method | Steel sheets: bundled packingCanvas liner: rolled packing | Suitable for sea/land transportation |
Optional Accessories | Drain valve, overflow pipe, ladder, observation window, aeration system, RAS | Customizable per project needs |
Thickness Selection Guide
· Small tanks (diameter ≤6m): Recommended 1.0mm–1.5mm galvanized sheet.
· Medium tanks (diameter 6m–15m): Recommended 1.5mm–2.0mm galvanized sheet.
· Large tanks (diameter ≥15m / height ≥2m): Recommended 2.0mm–3.0mm galvanized sheet.
· Cost-Effective: 50% lower investment than concrete ponds, 80% shorter construction period.
· High Efficiency: Supports 3-5 times stocking density than traditional earthen ponds, easy for feeding, oxygenation, and harvesting.
· Environmentally Friendly: Water-saving (over 60% vs earthen ponds), compatible with recirculating aquaculture systems (RAS) for zero discharge.
· Flexible Application: Customizable sizes (diameter 3-30m, height 1-3m), suitable for various terrains and scenarios.
· Terrain Requirement: Requires a flat and solid ground (concrete floor, compacted soil base, gravel ground, etc.), avoiding sharp objects to prevent puncture of the canvas liner.
· Water Adaptability: Suitable for freshwater, seawater, and various aquaculture water bodies (pH 6.5~8.5), meeting the breeding needs of different fish/shrimp species such as bass, catfish, prawns, and koi.
· Equipment Matching: Can be matched with aerators, water pumps, sewage treatment equipment, and recirculating water systems to build an intelligent aquaculture system.

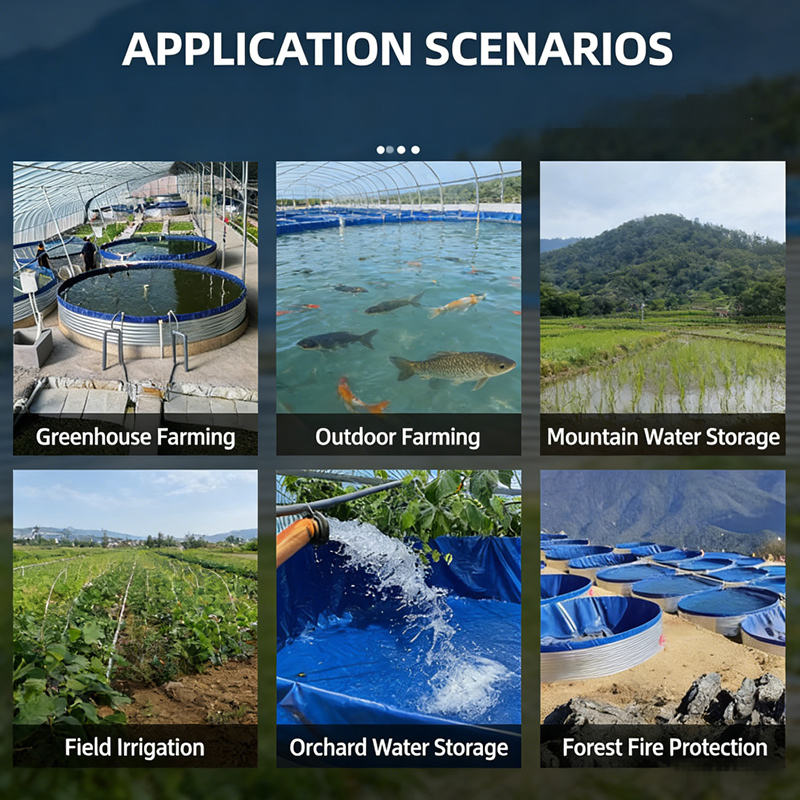

· Aquaculture: High-density farming of bass, catfish, shrimp, koi, and ornamental fish.
· Agriculture: Irrigation water storage, livestock drinking water, rainwater harvesting.
· Engineering: Emergency water storage, sewage treatment, landscape ponds.
· Custom size, color, and accessories (drain valve, overflow pipe, ladder, observation window).
· One-stop solution for recirculating aquaculture systems (RAS), aeration systems, and temperature control.
