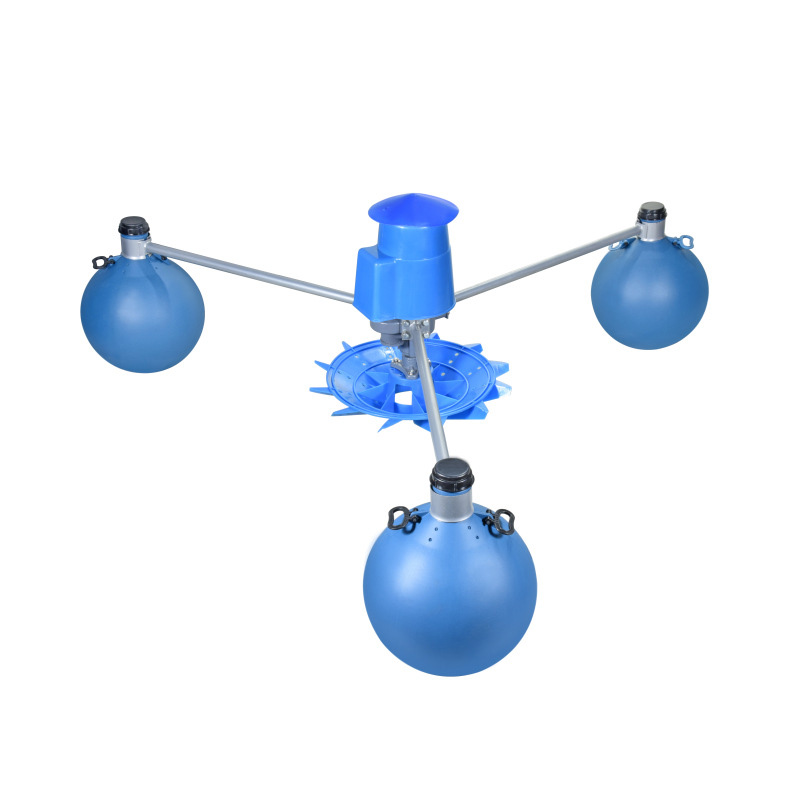

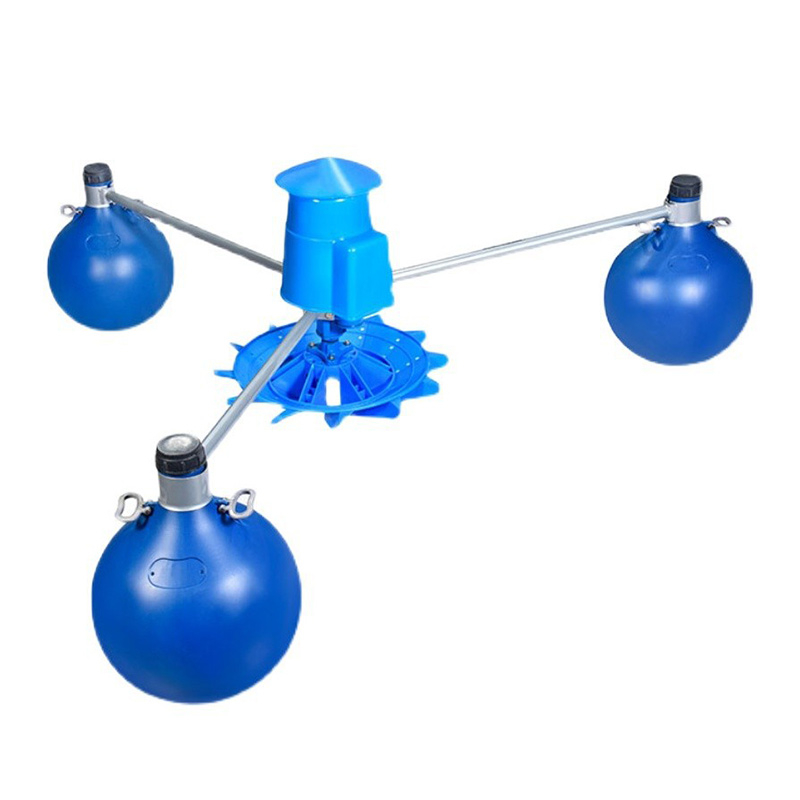

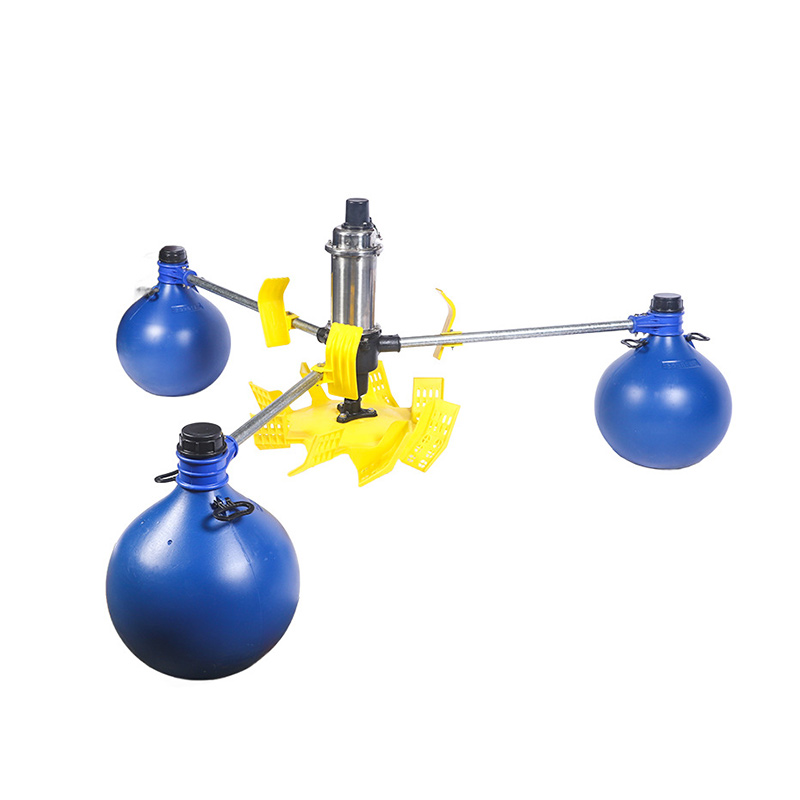

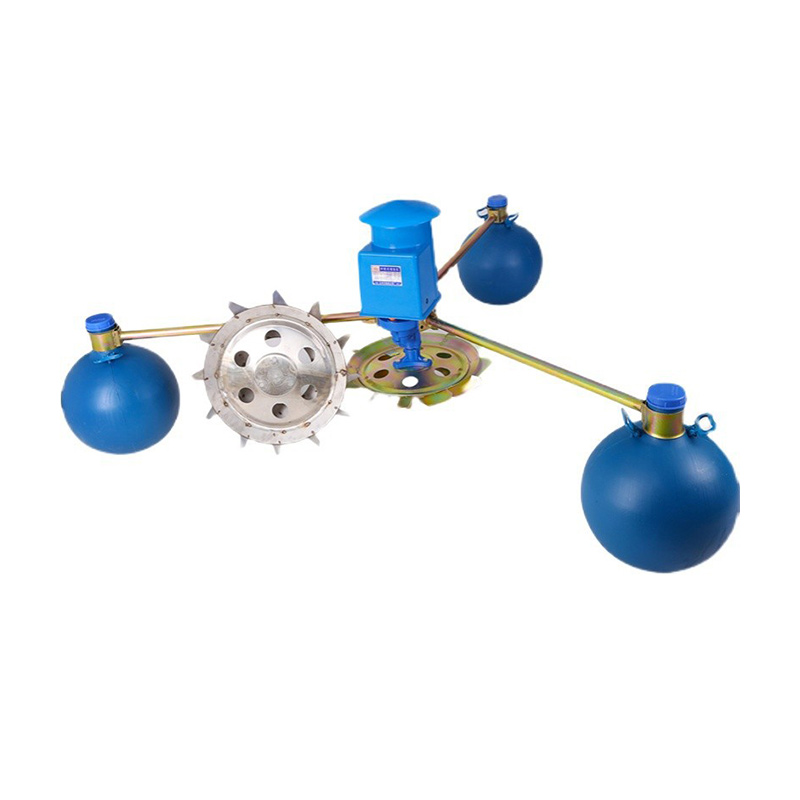

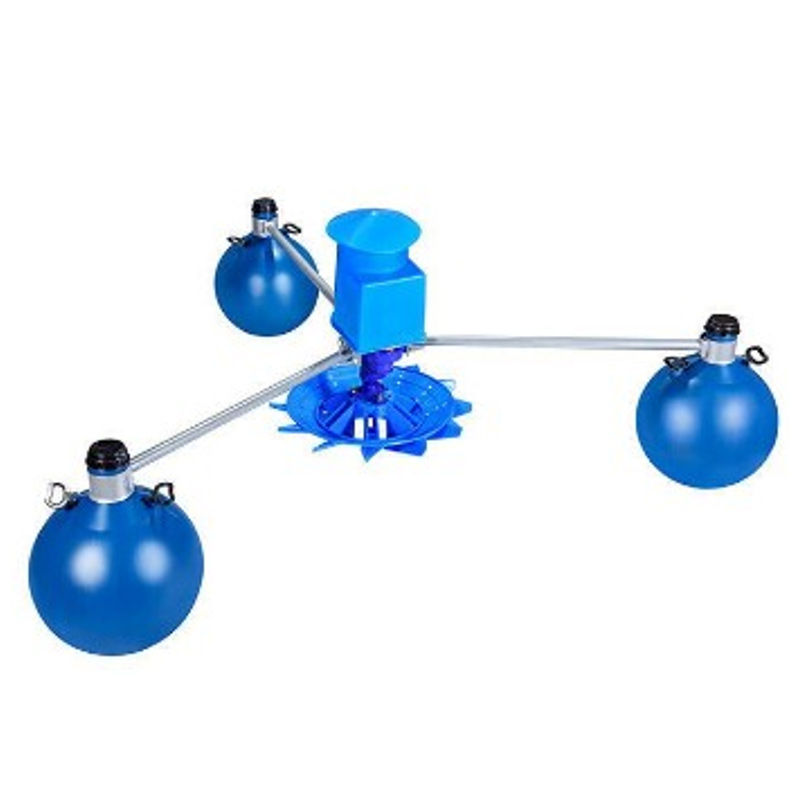

Impeller Aerator

This 3-float impeller aerator is a high-efficiency oxygenation device specially designed for aquaculture, widely used in freshwater fish ponds, shrimp/crab ponds and special aquaculture ponds. By driving the impeller to rotate at high speed through the motor, it realizes full contact between water and air, rapidly increases dissolved oxygen in water, improves the aquaculture water environment, and is the core equipment to ensure the survival rate of cultured animals and increase yield.

Working Principle

· Oxygenation Principle: The motor drives the impeller to rotate at high speed, using centrifugal force to throw water into the air to form water splashes, expand the water-air contact area, and quickly dissolve oxygen in the air into water.

· Circulation Principle: The impeller stirs and breaks the water layer, lifts hypoxic water from the bottom to the surface, and transports oxygen-rich surface water to the bottom, realizing full-water circulation, and inhibiting the accumulation of harmful gases such as hydrogen sulfide and ammonia.

Key Technical Parameters

Core Advantages

· Efficient Oxygenation: Delivers oxygen to the bottom water, ensuring uniform dissolved oxygen distribution and effectively preventing aquatic organisms from hypoxia.

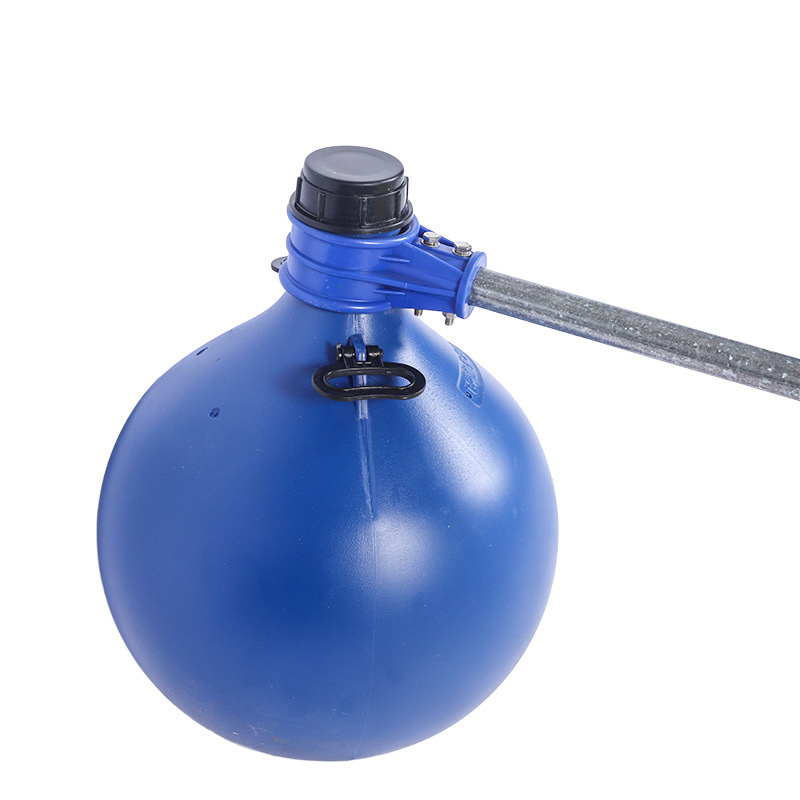

· Durable & Corrosion-resistant: Stainless steel motor, bracket, and rotor, plus HDPE floater, ensure long service life in both freshwater and seawater environments.

· Easy Installation & Maintenance: Floating design, no complex installation required;

Application Scope

· Suitable Scenarios: Fish ponds, shrimp ponds, crab ponds, freshwater aquaculture, seawater aquaculture, reservoirs, lakes, and landscape water bodies.

· Working Conditions: Water temperature: 0℃ - 45℃; Water pH: 6.5 - 9.0; Stable power supply (with leakage protection device recommended).

Water Depth Requirement

· Recommended depth: 1.2m ~ 3.0m

· Water depth <1.2m: Easy to stir up bottom sediment, affect water quality, not recommended.

· Water depth >3.0m: Increase number of equipment to improve full-pond oxygenation circulation effect.

Packaging & Service

· MOQ: 1 unit

· Warranty: 1 year for motor

· Packaging: Carton / Export wooden box packaging

· Delivery: 7–15 days for samples, 15–30 days for bulk orders

FAQ (Boost Conversion Rate)

1. Q: What pond area can one aerator cover?A: 1.5kW model for 0.18-0.3acre ponds, 2.2kW for 0.3-0.48acre, 3.0kW for 0.48-0.6 acre, adjustable according to breeding density.

2. Q: Can it be used in shallow water?A: Recommended water depth ≥1.2m, too shallow water easy to stir up sediment and affect water quality.

3. Q: Can it run 24 hours a day?A: Yes, IP55 waterproof motor supports long-term continuous outdoor operation.

4. Q: Is custom voltage/power available?A: Yes, support customization of 220V/380V and different power models according to customer needs.
