Product Description

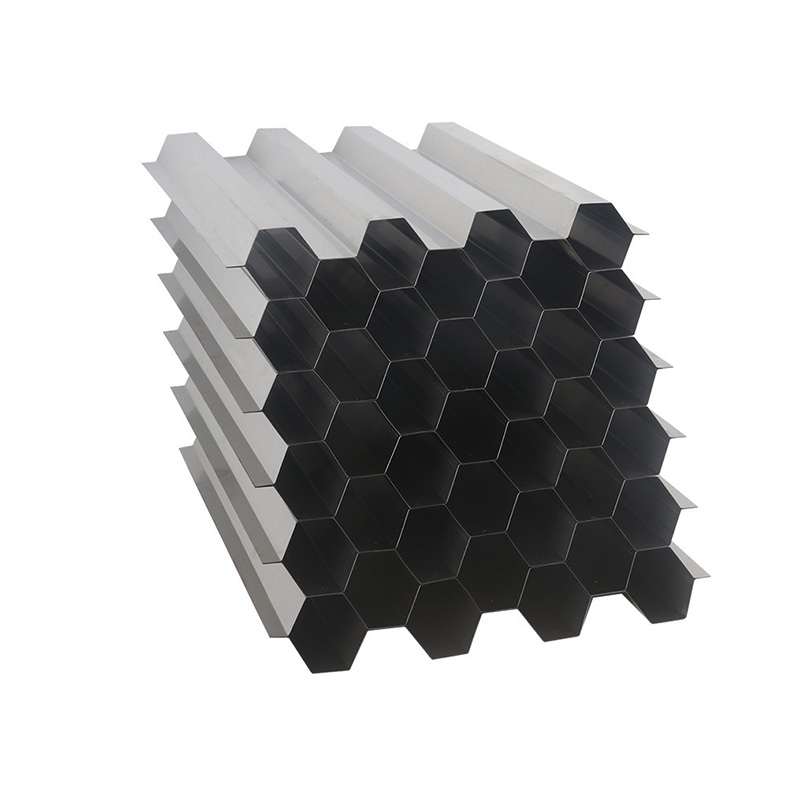

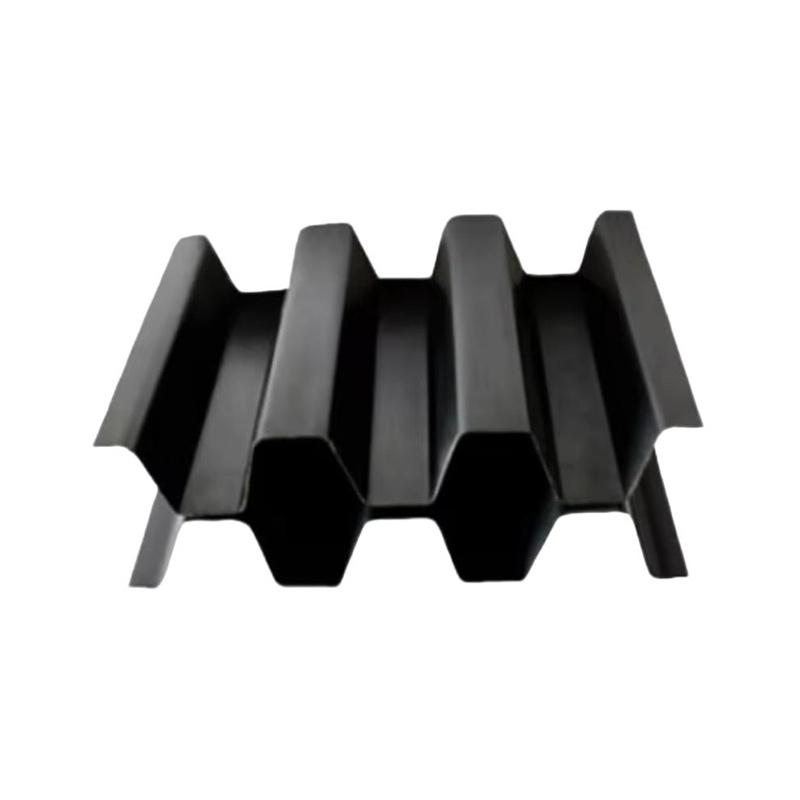

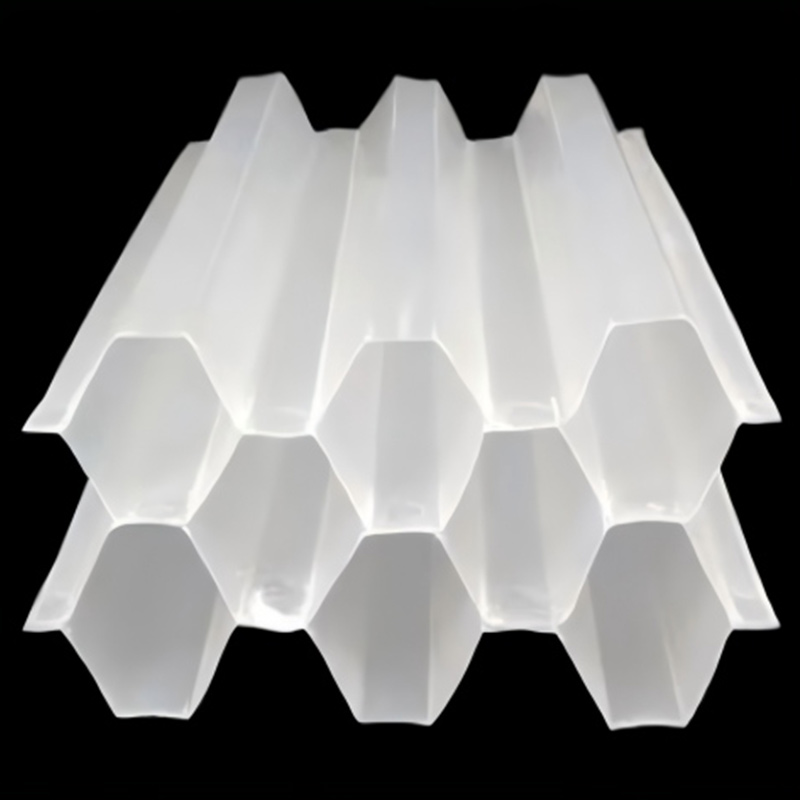

Inclined Tube Packing

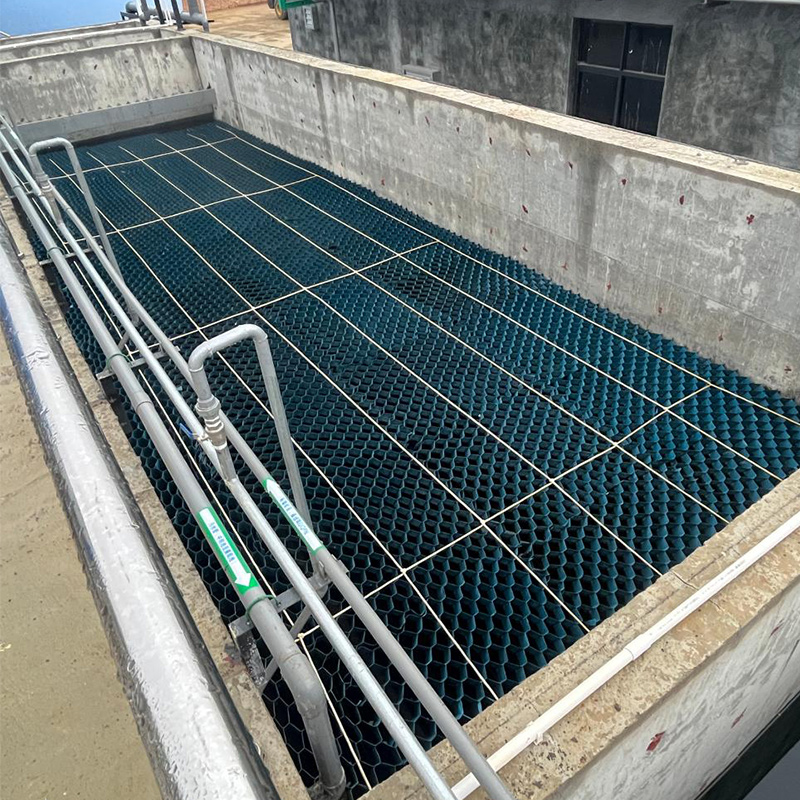

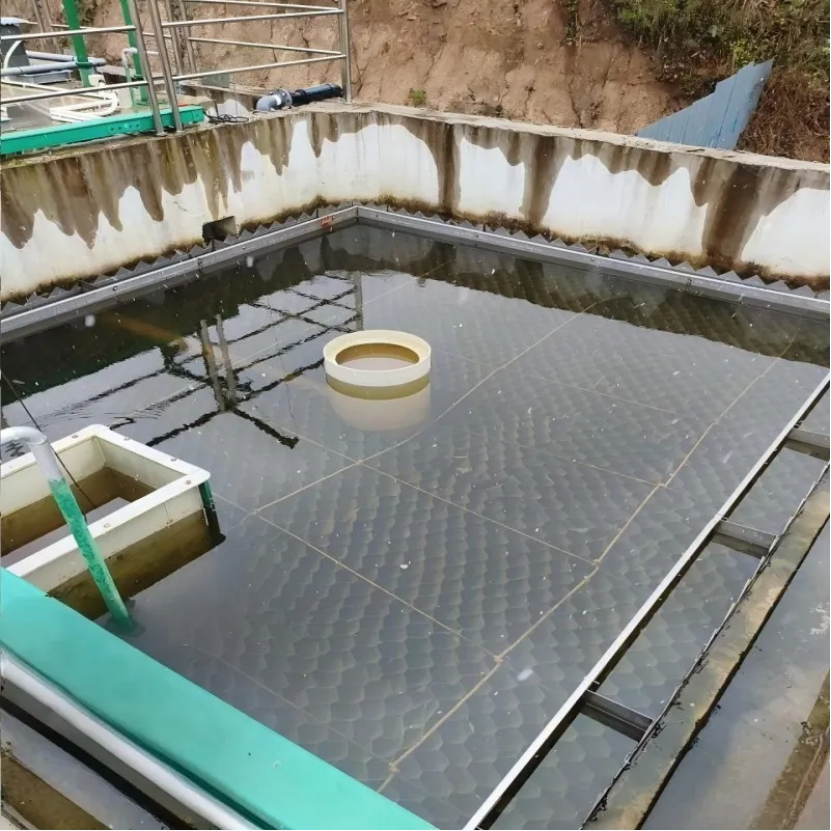

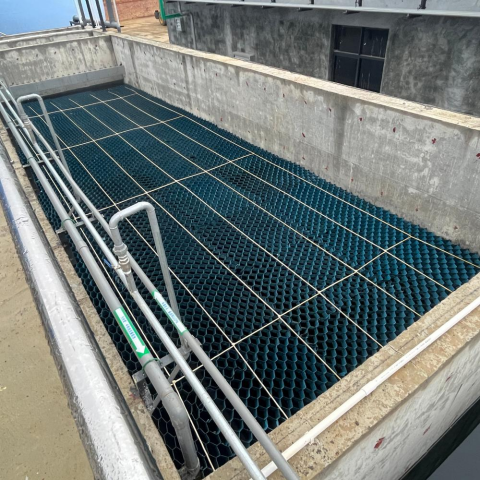

Inclined Tube Packing is very suitable in all different clarifiers and removing sand.It is regarded as universal water treatment equipment in water supply and drainage engineering.It has wide application,high handling efficiency,small area,etc.It is suitable in removing sand in inlet,industry and drink-ing water precipitation,separation in oil&water.The modular and cubical self-supporting settler design of Honeycombed Inclined Tube Settler aids handling during installation and any subsequent maintenance.
Product Features
Inclined Tube Packing features a modular design for standardized and custom processing. Key advantages include efficient sedimentation, land saving, hydraulic conditions, and resistance to weather and corrosion. Installation and maintenance are easy. It increases surface load 3-5 times and reduces land use by 50-70%. The design promotes stable laminar flow, avoiding flocculation interference and improving SS removal. Available in various materials and specifications, it suits different water conditions. Modular assembly simplifies construction, requiring only routine inspec-tions and cleaning. Maintenance costs are low, with easy module replace-ment.
Specification

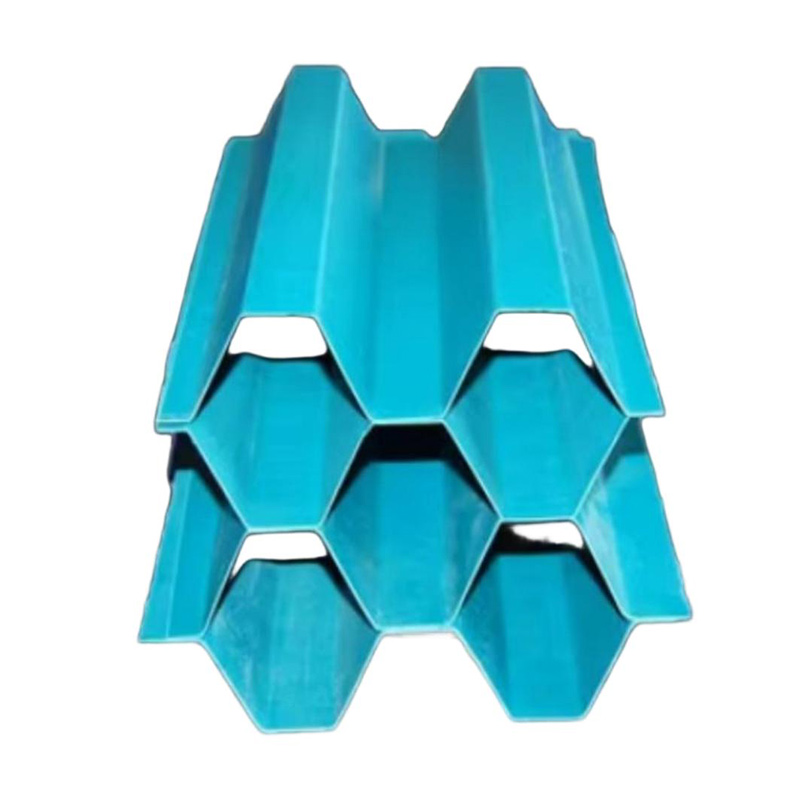

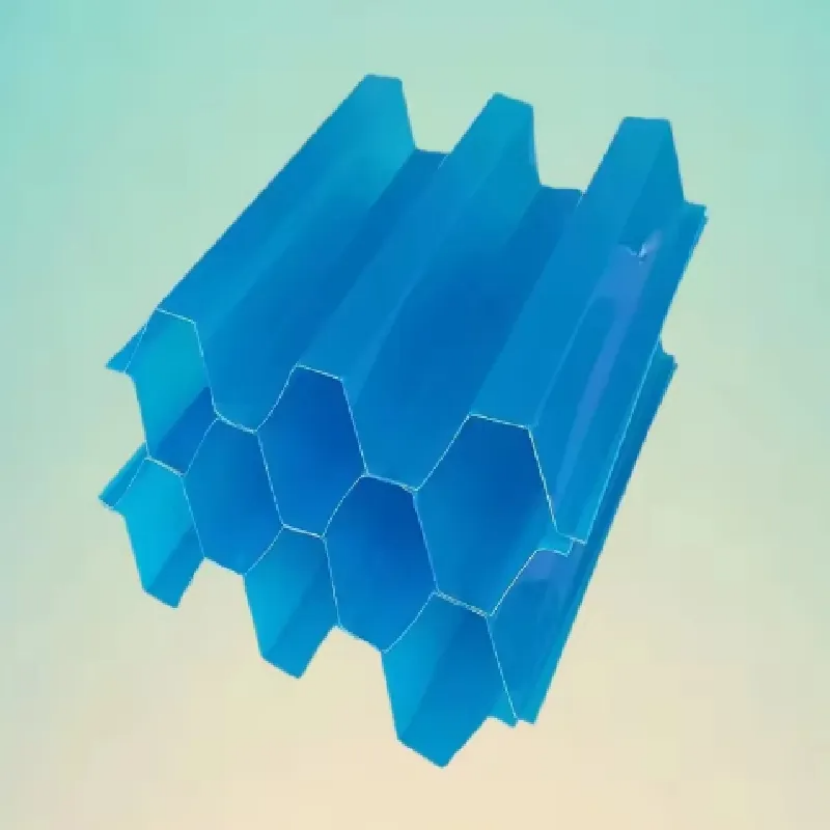

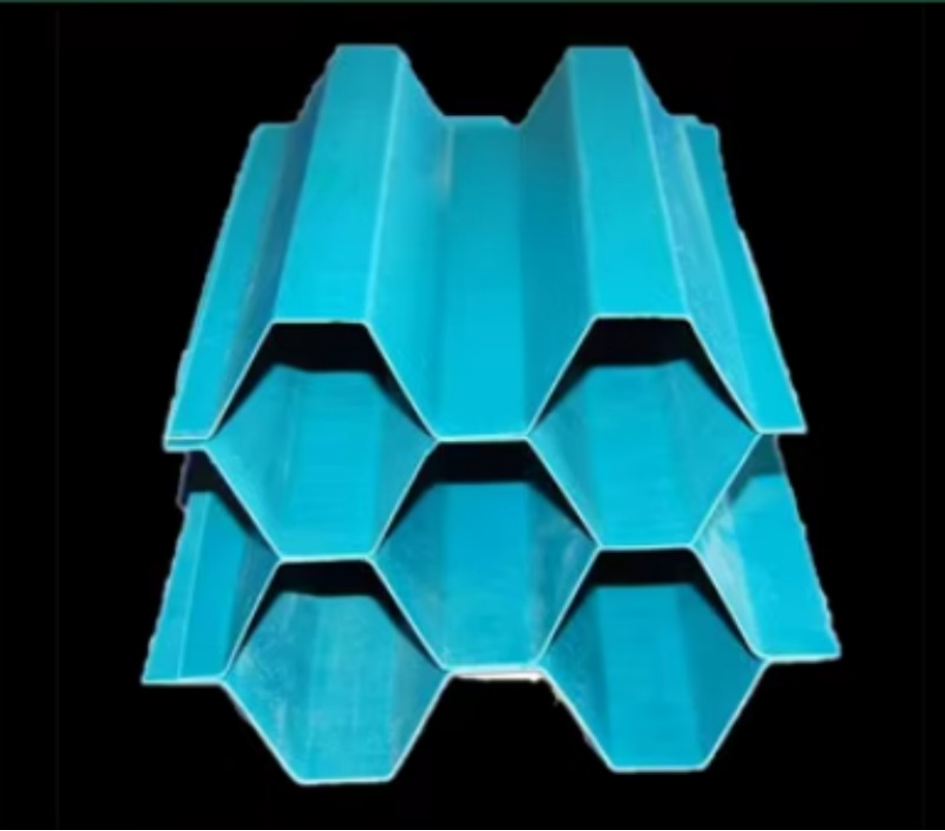

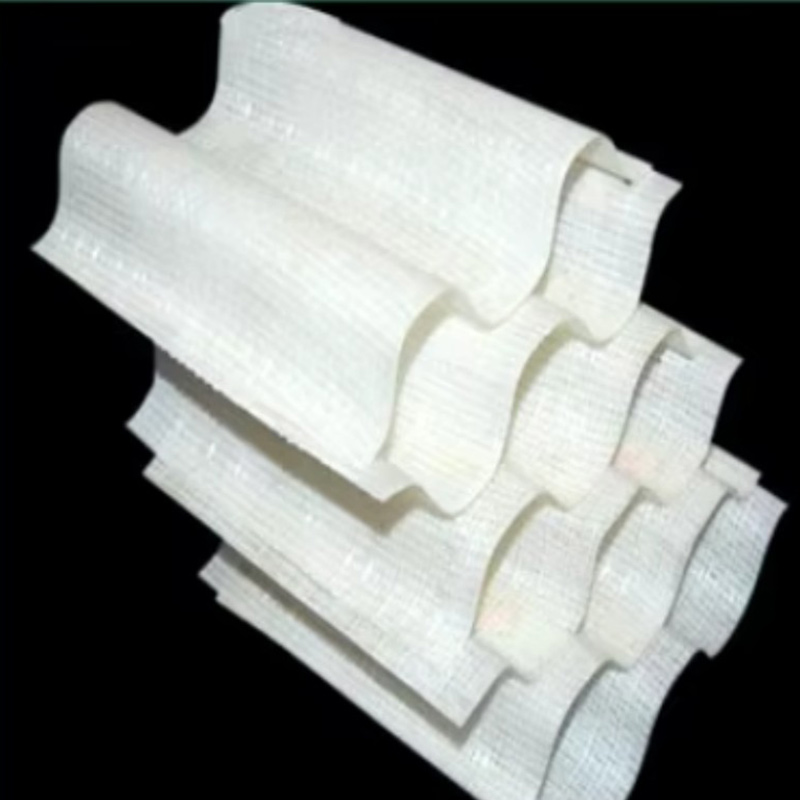

Material | PP | PVC | FRP | ||||||
Regular Size (mm) | φ35 | φ50 | φ80 | φ35 | φ50 | φ80 | φ35 | φ50 | φ80 |
Conventional number of pieces (m2) | 40 | 30 | 20 | 40 | 30 | 20 | 40 | 30 | 20 |
Single piece size (mm) | 1000*1000*δ | 1000*1000*δ | 1000*1000*δ | ||||||
Forming dimensions (mm) | 1000*1000*866 | 1000*1000*866 | 1000*1000*866 | ||||||
product application | Water supply/sewage/reclaimed water | sewage | Water supply/sewage/reclaimed water | ||||||
Appearance & Color | ivory | sky blue | Customization at will | ||||||
forming method | Soldering with an electric soldering iron | stickiness | stickiness | ||||||
product installation | On-site hot stamping | On-site adhesive | On-site adhesive | ||||||
angle of installation | 60° | 60° | 60° | ||||||
usage temperature | 5~50℃ | 5~50℃ | 5~70℃ | ||||||
specific gravity (g/cm) | 0.92 | 1.35~1.46 | 1.8 | ||||||
